起源の場所:
中国
ブランド名:
Stron
証明:
STS Certificated
モデル番号:
STE18-C

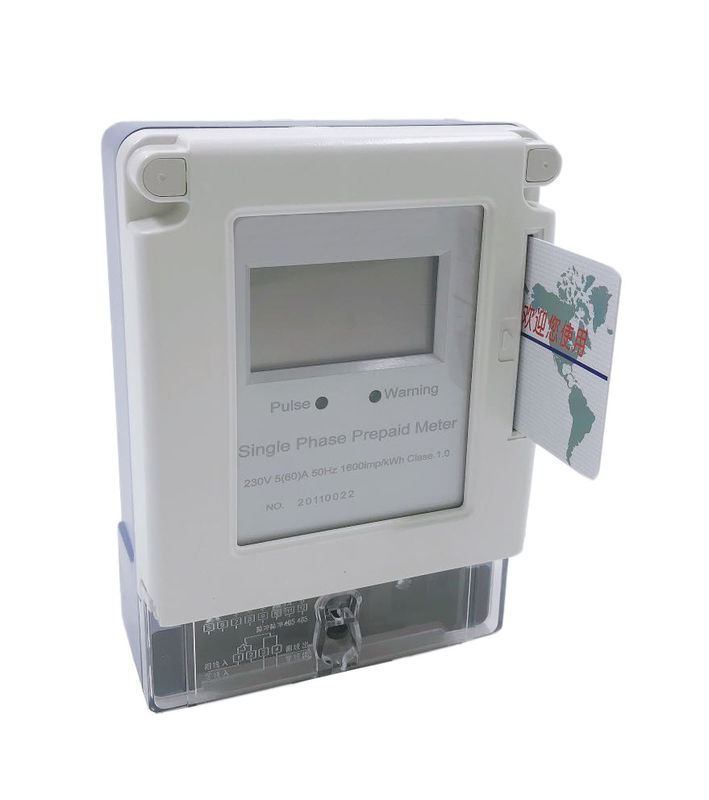

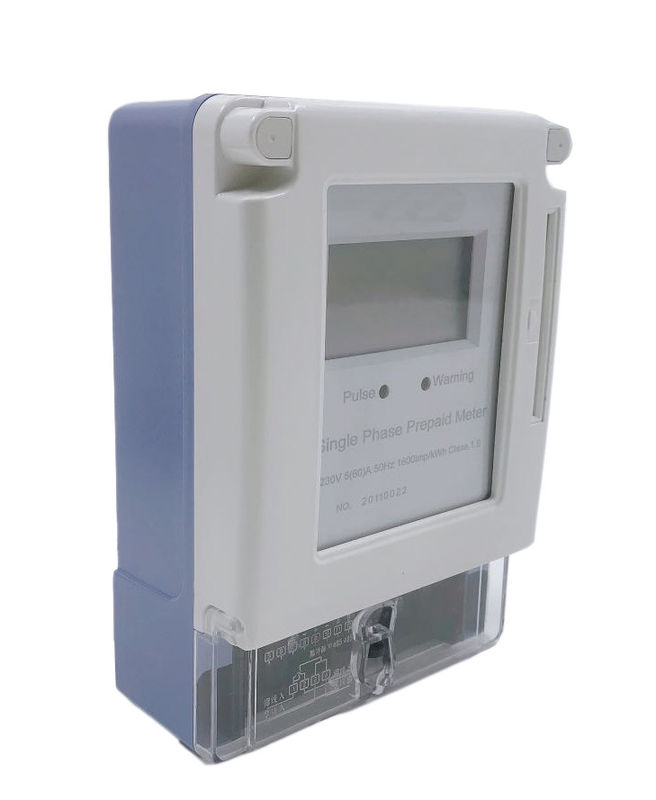

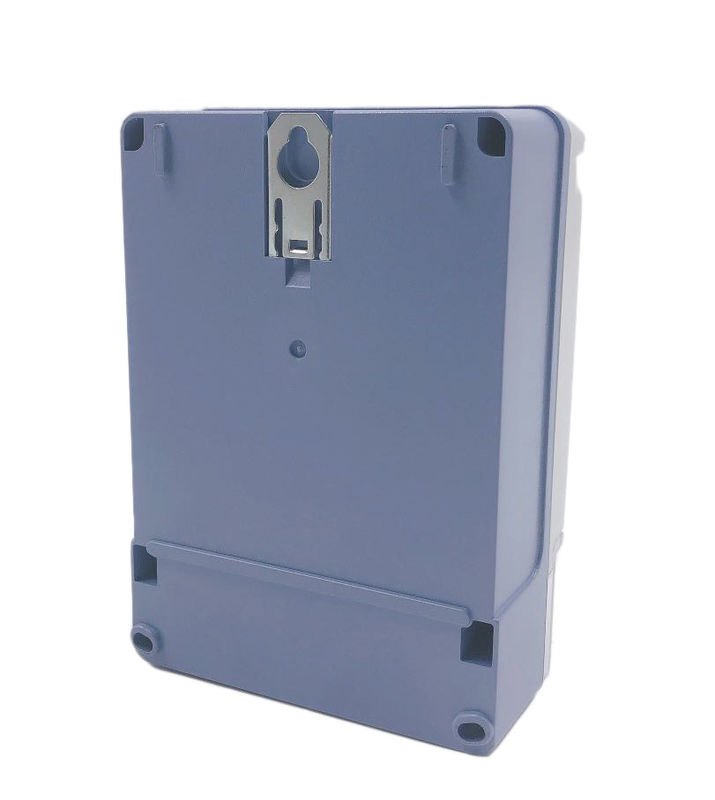

STS Standard Keypad Type Prepaid IC Card Digital Single Phase Energy With RFID Card Reader
This single phase prepayment meter also called quantitative meter, IC card prepaid meter, in addition the ordinary energy meter measurement functions, especially the user need to buy electricity first, use second, after run out of power if the user does not continue to buy electricity.the meter will automatically cut off, this meter is best way to solve payment collection problem, it also has function of anti-tampering, over load protection, management of energy consumption and user information. This type of meter is widely used in office building, shopping mall, residential, and public facility etc.
Main Features
1. One meter has one card, fake card is not available. Repeatable top-up, Effectively reduce waste.
2. LCD 6+2 digits display, maximum 999999.99 kWh.
3.Automatic power off when overload, also can prevent the error overload when the load restart.
4. Once the prepaid meter available energy is reached zero, meter relay will automatically cut the power off, unless the station has set overdraw limit ( Credit ).
5. The meter can set alarming kWh quantity, indicated by LED flash and secondary notice user the energy is Low, it’s in order to remind user to recharge power on time, Avoid unnecessary loss.
6. The forward and opposite direction active power can be measured.
7. data can be preserved for more than 10 years without power supply.
| Electrical Parameters | ||
| Nominal Voltage | 230V | |
| Working Voltage Range | 70%~120%Un | |
| Nominal Frequency | 50-60Hz | |
| Basic Current (Ib) | 5A | |
| Maximum Current (Imax) | 80A | |
| Starting Current (Ist) | 20mA | |
| Active Energy Constant | 1000imp/kWh | |
| Measurement Accuracy | Class 1.0 | |
| Power Consumption in Voltage Circuit | <2W <8VA | |
| Power Consumption in Current Circuit | <1VA | |
| Operation Temperature Range | -25℃-70℃ | |
| Storage Temperature Range | -40℃-85℃ | |
| Electro Magnetic Compatibility | ||
| AC Insulation Strength | 4kV at 50Hz during 1min | |
| Impulse voltage 1.2/50 us mains connections | 8kV | |
|
Electrostatic Discharges
|
Contact discharge | 8kV |
| Air discharge | 16kV | |
| Electromagnetic RF Field | 27MHz-500MHz | 10V/m |
| 100KHz-1GHz | 30V/m | |
| Fast transient burst test | 4kV | |
| Mechanical requirements | ||
| Meter shell Water proof protection Rate | IP54 | |
| Protection | Class II | |
Meter Dimension
Function:
| Function | Details |
| Prepayment | STS Standard, recharge by input 20digits TOKEN |
| Low credit alarm | Alarm value can be set by inputting corresponding TOKEN |
| Prepaid and post-paid switch | Meter can be switch to prepaid mode or post-paid mode |
| Load control function | Meter can be programmed for load control threshold, If the current power is more than threshold. The meter will cut off user load. |
| Event recording | Meter can record the tamper event, open cover event, purchase event and TOKENS. |
| Self-testing | Meter has a self-test function, it can test LCD and relay etc. and report the results directly |
| Anti-tamper | Meter will automatically close the valve after detection of magnetic field and open cover event |
| Overdraft Collection | Electricity Overdraft can be collected day by day or month by month |
| Communication | The meter is available with AMI system through LORA RF or Bluetooth 4.0 on request |
| Information Inquiry | Consumer could check the data like Credit Remain, Total Purchased and Total Credit by input the short code |
AMI System consist of Smart Meters, Communication systems and equipment, Meter Database Management System.
It can realize access, configuration, and control of various remote data; supports various electricity prices, analysis of electricity usage to lead self-conscious energy-saving, load control of remote user, automatic response; malfunction frame testing and remote connect/disconnect control, optimization of load forecast, and power quality, etc.
