起源の場所:
中国
ブランド名:
stron
証明:
STS
モデル番号:
RF

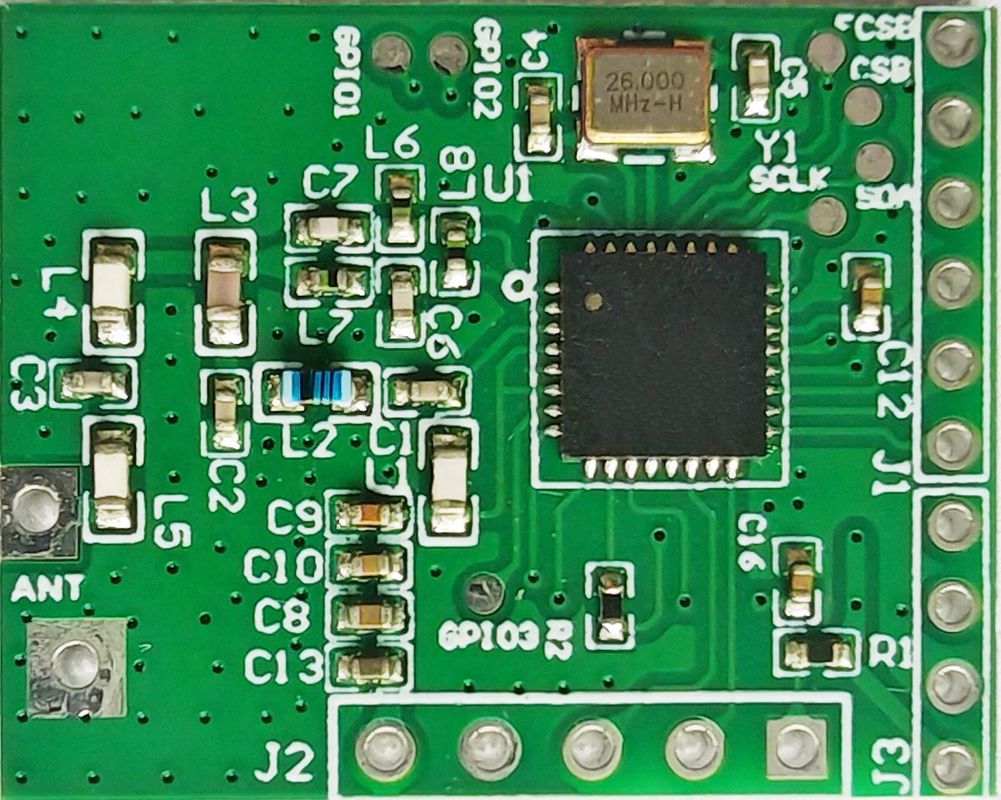

Compact 25mm SMT Design for Industrial IoT & Smart Metering
✅ Blazing 100kbps Speed
Maximize data throughput with FSK/GFSK modulation, ideal for real-time telemetry in drones, smart meters, and industrial sensors.
✅ Industry-Leading Sensitivity (-121dBm @2kbps)
Capture weak signals in noisy environments, ensuring reliable links over long distances.
✅ 1μA Sleep Current & 3.8mA RX Power
Extend battery life by years – perfect for battery-operated IoT devices.
✅ Triple Data Integrity Protection
FEC (Forward Error Correction) + Manchester Encoding + Data Whitening combat interference in crowded 433/915MHz ISM bands.
✅ 64-Byte FIFO Buffer
Offload resource-intensive tasks from low-cost MCUs – reduce system costs by 30%.
| Parameter | Specification |
|---|---|
| Frequency Bands | 433MHz / 915MHz (ISM, license-free) |
| RF Output Power | Up to 20dBm (100mW) |
| Data Interface | UART (3.3V TTL, requires 10kΩ pull-up) |
| Voltage Range | 3.0V–3.6V (3.3V typical) |
| Dimensions | 25.08 × 20.19 × 1.62 mm (L×W×H) |
| Antenna Interface | Spring pin (IPEX-compatible for PCB/external) |
| Temperature Range | Operates: -30°C to +70°C • Storage: -40°C to +85°C |
| Certification Ready | Designed for FCC/CE/RoHS compliance |
問い合わせを直接私たちに送ってください.
