ブランド名:
STRON SMART
モデル番号:
STG16-A
ドキュメント:

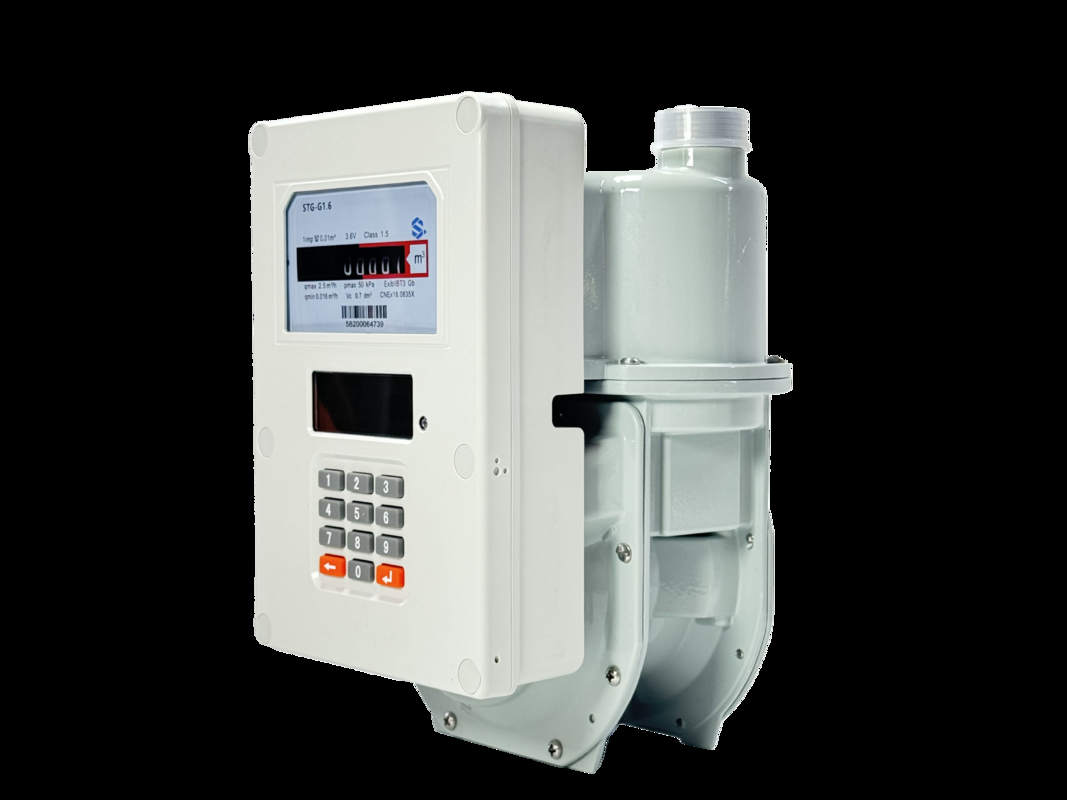

The STRON STG16- A STS keypad- type prepaid gas meter is widely used in natural gas supply infrastructure. It can effectively and accurately meet thegas consumption metering needs in various scenarios, including residential
communities, commercial spaces such as shopping malls, hotels and various commercial operations relying on stable gas supply, and industrial production. It plays a key role in intelligent gas distribution and consumption.
Case Material
AluminumDieCasting
Maximum Flow Rate
2.5 m3/h
4 m3/h
6m3/h Minimum Flow Rate 0.016 m3/h0.025m3/h 0.04m3/h
Cyclic Volume
0.7dm3
1.2dm3
2dm3
Qmin ≤ Q<0.1Qmax :± 3%,0.1 Qmax ≤Q≤
Basic Error
Qmax : ± 1.5%
Minimum Reading
0.001m3 (Index) / 0.01 m3 (LCD Indicator)
Maximum Reading
99999.999m3 (Index) / 99999.99m3 (LCD Indicator)
Working Temperature-10°C ~ +55°C (Humidity : 93% RH @40°C)
Max Working Pressure
≤ 1.0 bar
Resistance to dust and water
IP65 for open location (IEC 60529)
Battery-40℃-85℃
Lifetime of Battery
> 5years
Token Type
STS certified Numeric Code
LCD Display
9 digits with blue backlight
Sensing Type
Double Reed Switch flow Sensing for Magnetic
Attack Detection
Standard Compliance
OIML R137-1&2 (Diaphragm) / IEC 62055 (STS)
